Thursday, October 29, 2009

Configuring MSDTC (Distributed Transaction Co-ordinator)

MSDTC is required if transactions span multiple servers (i.e. linked servers, ugh!)

Firstly, the SERVICE needs to be running >



Secondly, you need to allow communication (Allow Inbound and Allow Outbound tickboxes below) >

Wednesday, October 28, 2009

Dynamic Management Objects : sys.dm_exec_query_stats

Sys.dm_exec_query_stats is a dmv (dynamic management view) which stores summary information about queries in the query cache.

Sys.dm_exec_sql_text(sql_handle) is a function that returns the executed command from sql_handle.

Putting them together with CROSS APPLY (APPLY lets you join the output of a function), you can see what is being run and how often.
SELECT t.text , s.*
FROM sys.dm_exec_query_stats  s
CROSS APPLY sys.dm_exec_sql_text(sql_handle) t
WHERE t.text NOT like 'SELECT * FROM(SELECT coalesce(object_name(s2.objectid)%'
ORDER BY execution_count DESC

This provides you 35 columns summarising query activity and includes counts, times, reads, writes statistics.

SQLDenis has provided a great query, which i've slightly adapted to order by the the most commonly executed queries.
It tells you where the sql is called from (ProcedureName) or replaces it with 'Ad-hoc' if not called from a procedure.
SELECT * FROM(SELECT COALESCE(OBJECT_NAME(s2.objectid),'Ad-Hoc') AS ProcedureName,execution_count,
(SELECT TOP 1 SUBSTRING(s2.TEXT,statement_start_offset / 2+1 ,
( (CASE WHEN statement_end_offset = -1
THEN (LEN(CONVERT(NVARCHAR(MAX),s2.TEXT)) * 2)
ELSE statement_end_offset END)  - statement_start_offset) / 2+1))  AS sql_statement,
last_execution_time
FROM sys.dm_exec_query_stats AS s1
CROSS APPLY sys.dm_exec_sql_text(sql_handle) AS s2 ) x
WHERE sql_statement NOT like 'SELECT * FROM(SELECT coalesce(object_name(s2.objectid)%'
ORDER BY execution_count DESC


SQLDenis's original post >http://blogs.lessthandot.com/index.php/DataMgmt/DBProgramming/finding-out-how-many-times-a-table-is-be-2008

MSDN Reference : http://msdn.microsoft.com/en-us/library/ms189741.aspx

Tuesday, October 27, 2009

Dynamic Management Objects : sys.dm_db_index_usage_stats

Sys.dm_db_index_usage_stats is a really helpful view that returns information on index usage.

Using AdventureWorks2008, we can list the indexes belonging to the TransactionHistory table ...
select * from sys.indexes
where object_id = object_id('production.transactionhistory')


Here we find out how they have been used ...

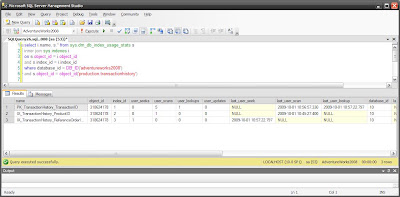

select i.name, s.* from sys.dm_db_index_usage_stats s
inner join sys.indexes i
on s.object_id = i.object_id
and s.index_id = i.index_id
where database_id = DB_ID('adventureworks2008')
and s.object_id = object_id('production.transactionhistory')


The view returns counts of seeks, scans and lookup operations as well as timestamps for the latest ones ...



This view is utilised by my Unused index and Index Sizes script as well as this simple example showing index usage in the current database.

Louis Davidson has an excellent article here >
http://sqlblog.com/blogs/louis_davidson/archive/2007/07/22/sys-dm-db-index-usage-stats.aspx

The MSDN reference is here >
http://msdn.microsoft.com/en-us/library/ms188755.aspx

Friday, October 23, 2009

MCITP : SQL 2008 Database Developer

Following passing my MCTS on Monday , I passed MCITP Database Developer 2008 (exam 70-451) this afternoon.

Very relieved to get my evenings back. :)
r

Wednesday, October 21, 2009

A trip down memory lane...

On the eve of the Windows 7 launch, Windows over the years...

http://news.bbc.co.uk/1/hi/technology/8316268.stm

Can personally remember using Windows 2 and running a Windows 3 network for school :)

Tuesday, October 20, 2009

Cursor Template TSQL

DECLARE  @id BIGINT
DECLARE tablecursor CURSOR FORWARD_ONLY FOR
SELECT id
FROM   SCHEMA.table

OPEN tablecursor
FETCH NEXT FROM tablecursor
INTO @id

WHILE (1 = 1)
BEGIN

IF @@FETCH_STATUS <> 0
BREAK;

PRINT @id
--DO SOMETHING USEFUL HERE !

FETCH NEXT FROM tablecursor
INTO @id

END

CLOSE tablecursor
DEALLOCATE tablecursor

Bookmark : Constraints on Large Text Columns

An interesting way of enforcing unique constraints which tackles the problem of index size by using HASHBYTES (like CHECKSUM but better)

SQL Server Unique Constraints for Large Text Columns

Demystified : How SQL Server uses threads

Data files & threads - Clarification (From Steve Jones' blog).
"The bottom line is that SQL Server uses a thread for each unique disk drive, NOT files. In SQL 2000, you can fool the system if the disk drives are volumes on the same physical disk. However in SQL 2005 the system checks to see if these are the same physical disk.

There are some caveats, but if you hear this rumor, dispel it. Let people know that multiple file groups (or files) only help if you have different physical I/O paths and drives."
http://www.sqlservercentral.com/blogs/steve_jones/archive/2009/10/13/sql-server-legend-data-files-and-threads.aspx

Therefore performance is only a reason for partitioning when separate disks are involved.
Obviously, partitioning is still worth the effort if you wish to reduce backup sizes & times by implementing a strategy that includes it.

Also, if data is partitioned and then your boss stumps up for another drive, you're ready to move some partitions!

SQL 2008 : Filtered Indexes

Nice new functionality in SQL 2008, Filtered Indexes are indexes defined with a WHERE clause!

Nothing further here until I have time to explore, implement and write my own experiences...

http://sqlblogcasts.com/blogs/grumpyolddba/archive/2008/07/11/filtered-indexes-really-cool.aspx


http://sqlfool.com/2009/04/filtered-indexes-what-you-need-to-know/


http://www.mssqltips.com/tip.asp?tip=1785

Monday, October 19, 2009

MCTS : SQL 2008, Database Development

In Septembar I gained my MCTS & MCITP in SQL Server Administration.

This afternoon I'm happy to say I got MCTS Database Development, exam 70-433.

r

TSQL : Partitioning an existing table

A few months back I published  SQL 2005 / 2008 : Table Partitioning - Run through , just enough notes to get Partitioning up and running (on SQL Enterprise / Developer editions).

What I forgot to post was how to move existing tables to the partition -

This is achieved easily i.e. by adding a clustered index that uses the partition scheme -

USE TestDB;
GO
--- Step 8 : (Optional/Recommended) Create Index on Partitioned Table
CREATE UNIQUE CLUSTERED INDEX IX_TestTable
ON TestTable(ID)
ON TestDB_PartitionScheme (ID);
GO

Sunday, October 18, 2009

Persisted Columns Problem : Persisting a time difference

Below you'll see I attempt to define 2 calculated columns as PERSISTED...
CREATE TABLE [dbo].[WebActivity](
[Id] [bigint] IDENTITY(1,1) NOT NULL,
[Url] [varchar] (255) NULL,
[TrackingDateTime] [datetime2] (0) NOT NULL,
[TrackingSeconds] AS DATEDIFF(SECOND,'20000101',TrackingDateTime) PERSISTED,
[TrackingDay] AS DATEDIFF(DAY,'20000101',TrackingDateTime) PERSISTED)
ON [PRIMARY]
GO

This fails however, with the error...

Msg 4936, Level 16, State 1, Line 1
Computed column 'TrackingSeconds' in table 'WebActivity' cannot be persisted because the column is non-deterministic.

What does this mean, then?

According to MSDN...

" Deterministic functions always return the same result any time they are called with a specific set of input values. "

and further down, the answer...

" Deterministic unless used with datetime, smalldatetime, or sql_variant. The datetime and smalldatetime data types are deterministic if the style parameter is also specified. "

So to obtain my 'Deterministic datetime2 difference I have used 2 CONVERT statements.
The first declares my defined epoch of 2000-01-01 as a DATETIME2.
The second casts the entire result back to a numeric data type.

CREATE TABLE [dbo].[WebActivity](
[Id] [bigint] IDENTITY(1,1) NOT NULL,
[Url] [varchar] (255) NULL,
[TrackingDateTime] [datetime2] (0) NOT NULL,
[TrackingSeconds] AS CONVERT(INTEGER,DATEDIFF(SECOND,CONVERT(DATETIME2,'20000101',112),TrackingDateTime)) PERSISTED,
[TrackingDay] AS CONVERT(SMALLINT,DATEDIFF(DAY,CONVERT(DATETIME2,'20000101',112),TrackingDateTime)) PERSISTED,

ON PRIMARY
GO


Saturday, October 17, 2009

Visual Studio Add-in : BIDS Helper

BIDS Helper is a FREE add-in for BIDS/Visual Studio

As I’m currently working with Integration Services , these features are very much of interest >

* Create Fixed Width Columns
* Deploy SSIS Packages
* Design Warnings
* dtsConfig File Formatter
* Expression and Configuration Highlighter
* Expression List
* Fix Relative Paths
* Non-Default Properties Report
* Pipeline Component Performance Breakdown
* Reset GUIDs
* Smart Diff
* Sort Project Files
* Sortable Package Properties Report
* SSIS Performance Visualization
* Variables Window Extensions

Personally I’m particularly interested in the Performance Studio feature...

The Non-Default Properties Report is also excellent for when you lose track of what you’ve changed, sorry tuned :)

Friday, October 16, 2009

Stored Procedures - The Arguments

I'm 'pro' Stored Procedures. A couple of excellent url's that discuss the reasons...

Paul Nielson - Why use stored procedures?
Kimberley Tripp - Stored procedures are not evil...

Wednesday, October 14, 2009

Free Tool : OpenDBDiff

This morning's SQLServerCentral email features a new (free and open source) tool called opendbdiff.
Basicly it is a free alternative to Redgate's SQL Compare and is compatible with SQL 2005 & SQL 2008.

You can download it from the codeplex site here.

The 'Mak' reviews it here.

Tuesday, October 13, 2009

SSIS : Introducing a wait step in the Control Flow

In a processing system I wanted SSIS to pause for a period of time (say 1 minute) to allow more data to arrive in my Import db.

The obvious solution was an empty 'For Loop' Container, constrained by looping until a minute had passed. Whilst trialing this approach I noticed the Physical Memory usage slowly increase (until it eventually consumed all memory and the package crashed).

My new approach is using an 'Execute SQL' task (shown below).

Basically, I am using the TSQL WAITFOR command, like this > WAITFOR DELAY '00:01:00'.
I am happy to report no memory issues and my package is running continuously with no unwanted side effects...

Wednesday, October 7, 2009

SQL 2008 : Sparse Columns

If a column is sparsely (rarely) populated, you can benefit by declaring it as SPARSE.
By declaring columns where the majority of data is NULL as 'sparse' you can save storage space.

The Technet Explanation of Sparse column functionality.

As ever, Pinal Dave has investigated Sparse columns fully.

Monday, October 5, 2009

Finding Page Splits

Finding Page splits by using undocumented function fn_dblog (this queries the transaction log) -

SELECT *
FROM ::fn_dblog(NULL, NULL)
WHERE operation = 'LOP_DELETE_SPLIT'
ref ; http://killspid.blogspot.com/2006/07/using-fndblog.html

You can summarise them like this -
Select COUNT(1) AS NumberOfSplits, AllocUnitName , Context
From fn_dblog(NULL,NULL)
Where operation = 'LOP_DELETE_SPLIT'
Group By AllocUnitName, Context
Order by NumberOfSplits desc
ref - Identifying Page Splits


Other ways to monitor  page splits -

Recommended links about Page Allocation

MS CSS Sql Server Engineers : How It Works: SQL Server Page Allocations

Recommended links about Page Splits

Tony Rogerson : What is a page split and why does it happen?
SQL Server Performance : At what point should I worry about page splits?
Michelle Ufford : Page Splitting & Rollbacks
Michelle Ufford : sys.fn_physLocCracker (SQL 2008 Undoumented function)

Sunday, October 4, 2009

Minimising Data Compression Rebuild Time

ALTER TABLE REBUILD WITH(DATA COMPRESSION=PAGE,MAXDOP=8)


Implementing table compression use server MAXDOP (sp_configure 'max degree of parallelism') if you dont set MAXDOP in statement.

A good explanation of page compression and the MAXDOP setting is here >
http://sqlblog.com/blogs/linchi_shea/archive/2008/05/05/sql-server-2008-page-compression-using-multiple-processors.aspx

Saturday, October 3, 2009

TSQL : While Loop (loop without cursor)

Really simple this, but i keep using so I thought I'd post.
How to loop in TSQL (without a CURSOR)
DECLARE @Counter INT
DECLARE @CounterText VARCHAR(30)
DECLARE @MaxCount INT
DECLARE @Stepsize INT

SELECT @Counter = 0
SELECT @MaxCount = 40000
SELECT @Stepsize = 1000

WHILE @Counter <= @MaxCount
BEGIN
 SET @CounterText = CONVERT(VARCHAR(30),@Counter,23)
 RAISERROR (@CounterText, 10, 1) WITH NOWAIT
 -- do useful stuff here
 SELECT @Counter = @Counter + @Stepsize
END
and counting down....
DECLARE @Counter INT
DECLARE @CounterText VARCHAR(30)
DECLARE @MinCount INT
DECLARE @Stepsize INT

SELECT @Counter = 40000
SELECT @MinCount = 0
SELECT @Stepsize = 1000

WHILE @Counter >= @MinCount
BEGIN
 SET @CounterText = CONVERT(VARCHAR(30),@Counter,23)
 RAISERROR (@CounterText, 10, 1) WITH NOWAIT
 -- do useful stuff here
 SELECT @Counter = @Counter - @Stepsize
END
